XIAO-ESP32C3

Support

XIAO-ESP32C3

Setup Arduino IDE

Step 1. Download and Install the latest version of Arduino IDE according to your operating system Step 2. Launch the Arduino application

Step 3. Add ESP32 board package to your Arduino IDE

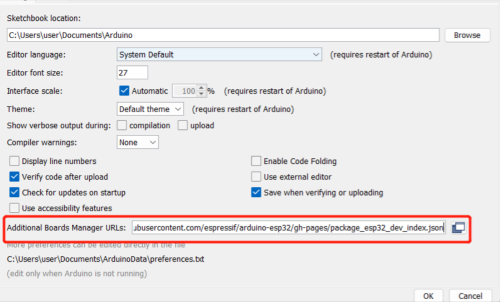

Navigate to File > Preferences, and fill "Additional Boards Manager URLs" with the url below: https://jihulab.com/esp-mirror/espressif/arduino-esp32.git

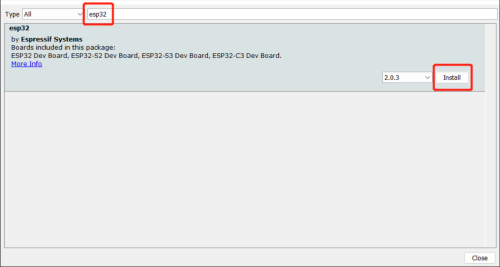

Navigate to Tools > Board > Boards Manager..., type the keyword "esp32" in the search box, select the latest version of esp32, and install it.

Step 4. Select your board and port

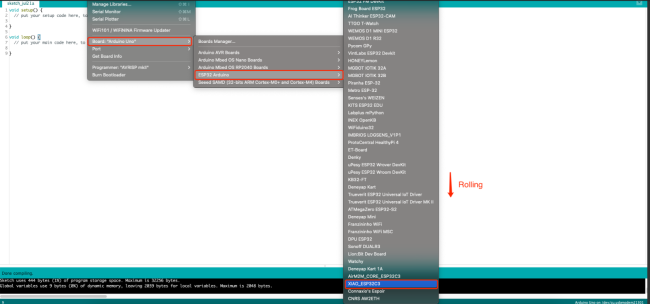

Navigate to Tools > Board > ESP32 Arduino and select "XIAO_ESP32C3". The list of board is a little long and you need to roll to the buttom to reach it.

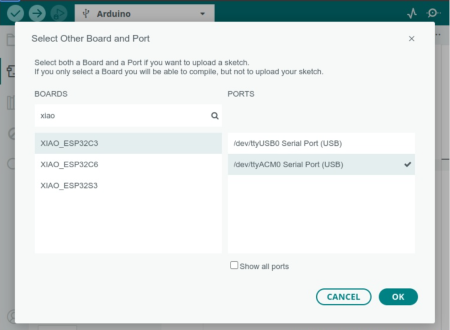

Navigate to Tools > Port and select the serial port name of the connected XIAO ESP32C3. This is likely to be COM3 or higher (COM1 and COM2 are usually reserved for hardware serial ports).
