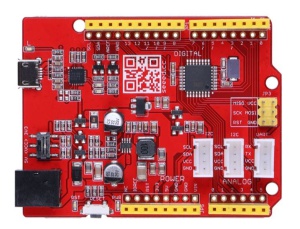

Seeeduino V4.2

Seeeduino v4.2

Processor : ATmega328P
DC Jack Input : 7v-12v
USB : 5V / DC (Micro USB)
CP210x USB to UART
https://www.silabs.com/software-and-tools/usb-to-uart-bridge-vcp-drivers

3.3/5V power switch
Fully compatible with Arduino UNO

Grove Connector : 2x I2C + 1x UART

images

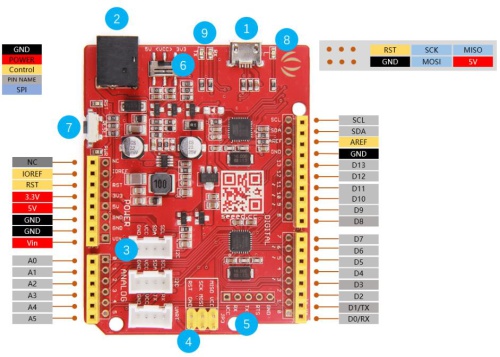

❶ - 1 - USB Input: Micro USB
❷ - 2 - DC Input:
❸ - 3 - Grove Connectors:
❹ - 4 - ICSP:
❺ - 5 - USB 2 Uart:
❻ - 6 - System Power Switch:3.3/5V
❼ - 7 - Reset:
❽ - 8 - LED-D13:
❾ - 9 - RX/TX Indicator:

Liens

www.seeedstudio.com/Seeeduino-V4-2-p-2517.html shop

wiki.seeedstudio.com/Seeeduino_v4.2/ wiki

Installation

ARDUINO IDE

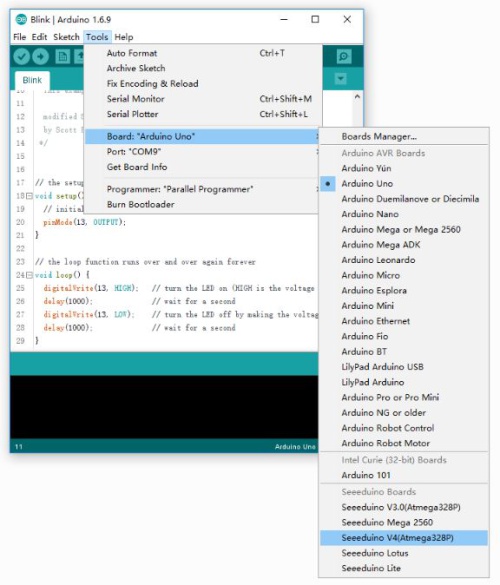

Tools > Board : Arduino Uno > Seeeduino V4(Atmega328P)

Select your serial port.
Tools > Port

Code

Blink code
