IPS Display 1.22 inch

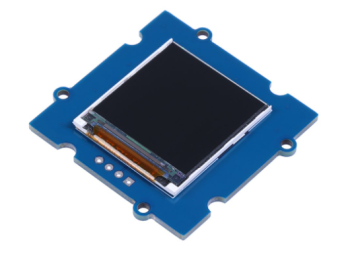

Grove - IPS Display 1.22 inch (Seeed-Studio)[edit]

Caractéristiques[edit]

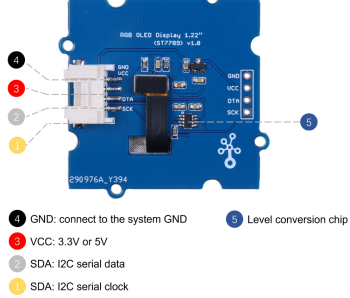

RGB OLED Display 1.22 <ST7789> v1.0
écran à cristaux liquides de 1,2 pouce
240 x 240 pixels
l'écran peut afficher jusqu'à 65 000 couleurs RGB
3.3V or 5V
l'écran utilise le ST7789 comme circuit intégré de pilotage
l'écran utilise la technologie IPS. Quel que soit l'angle de vue, l'expérience visuelle est quasiment identique sous tous les angles.

Sa bibliothèque de pilotes open source et son code d'exemple facilitent la prise en main

Communication[edit]

D7 (D7/D8) port

Liens externes[edit]

https://www.hackster.io/robocircuits/arduino-colored-oled-652ded Exemple

https://www.seeedstudio.com/Grove-1-2-Inch-IPS-Display-p-5699.html shop

wiki.seeedstudio.com/grove_1.2inch wiki

Bibliothèques[edit]

il faut installer les 3 librairies ici :

https://github.com/adafruit/Adafruit-GFX-Library
https://github.com/adafruit/Adafruit_BusIO
https://github.com/limengdu/Arduino_ST7789_Fast/tree/master

La librairie Arduino_ST7789_Fast a été mis à jours, en août 2025, veuillez réinstaller la bibliothèque en cas de problème.

Arduino_ST7789_Fast
lcd.setTextColor(GREEN,BLACK);
lcd.setTextColor(BLUE,BLACK);
lcd.setTextColor(RED,BLACK);

Code - HELLO WORLD -[edit]

Arduino IDE 2.3.6
Arduino UNO
Base Shield (5 Volts)
Grove-1.2 Inch IPS Display (Port D7) ✅
Grove-1.2 Inch IPS Display (Port D8) ❌ aucun affichage !

Grove Base for XIAO
XIAO-RA4M1
RGB OLED IPS Display 1.22 inch <ST7789>, Port D7 ❌ aucun affichage !

Seeeduino v4-2
Base Shield V2 Port D7 ✅
RGB OLED IPS Display 1.22 inch

Librairies :
https://github.com/adafruit/Adafruit-GFX-Library
https://github.com/adafruit/Adafruit_BusIO
https://github.com/limengdu/Arduino_ST7789_Fast/tree/master Arduino_ST7789_Fast a été mis à jours, en août 2025

#include <Adafruit_GFX.h>
#include <Arduino_ST7789_Fast.h>

#define SCK   7
#define SDA   8

Arduino_ST7789 lcd = Arduino_ST7789(SCK, SDA);

void setup(void)
{
    lcd.init();
    lcd.fillScreen(BLACK);

    lcd.setCursor(20, 96);
    lcd.setTextColor(GREEN,BLACK);
    lcd.setTextSize(3);
    lcd.println("HELLO WORLD");
}

void loop()
{

}

Code - Numeric display -[edit]

Seeeduino v4-2
Base Shield V2 Port D7 ✅
RGB OLED IPS Display 1.22 inch

Librairies :
https://github.com/adafruit/Adafruit-GFX-Library
https://github.com/adafruit/Adafruit_BusIO
https://github.com/limengdu/Arduino_ST7789_Fast/tree/master Arduino_ST7789_Fast a été mis à jours, en août 2025
https://github.com/cbm80amiga/RREFont

// ST7789 library example
// Numeric display - RREFont vs PropFont
// (c) 2020 Pawel A. Hernik
// YouTube videos:
// https://youtu.be/OOvzmHcou4E
// https://youtu.be/-F7EWPt0yIo



#include <SPI.h>
#include <Adafruit_GFX.h>

#include <Adafruit_GFX.h>
#include <Arduino_ST7789_Fast.h>

#define SCK   7
#define SDA   8

Arduino_ST7789 lcd = Arduino_ST7789(SCK, SDA);

// define what kind of fonts should be used
#define USE_RRE_FONTS 1

#if USE_RRE_FONTS==1

#include "RREFont.h"
#include "rre_term_10x16.h"
#include "rre_bold13x20.h"
#include "rre_bold13x20v.h"
#include "rre_bold13x20no.h"

RREFont font;
// needed for RREFont library initialization, define your fillRect
void customRect(int x, int y, int w, int h, int c) { return lcd.fillRect(x, y, w, h, c); }

#else

#include "PropFont.h"
#include "bold13x20digtop_font.h"
#include "term9x14_font.h"

PropFont font;
// needed for PropFont library initialization, define your drawPixel and fillRect
void customPixel(int x, int y, int c) { lcd.drawPixel(x, y, c); }
void customRect(int x, int y, int w, int h, int c) { lcd.fillRect(x, y, w, h, c); }
#endif

//-----------------------------------------------------------------------------

unsigned long ms = 0;

void setup()
{
    Serial.begin(9600);
    lcd.init();
    font.init(customRect, 240, 240); // custom fillRect function and screen width and height values
}

const uint16_t lnCol  = RGBto565(255,150,255);
const uint16_t ln2Col = RGBto565(180,180,180);
const uint16_t labCol = RGBto565(250,250,250);
const uint16_t v1Col  = RGBto565(100,250,100);
const uint16_t v2Col  = RGBto565(255,250,100);
const uint16_t v3Col  = RGBto565(120,255,255);
const uint16_t v4Col  = RGBto565(255,120,120);
const uint16_t v5Col  = RGBto565(150,150,255);
//const uint16_t v5Col  = RGBto565(250,150,250);
int mode=0,lastMode=-1;

void setBigNumFont()
{
#if USE_RRE_FONTS==1
    font.setFont(&rre_Bold13x20v);
    //font.setFont(&rre_Bold13x20);  // regular RRE rendered with rectangles
    //font.setFont(&rre_Bold13x20no);  // like above but no overlapping
#else
    font.setFont(Bold13x20);
#endif
    font.setSpacing(1);
    font.setScale(1,2);
    font.setDigitMinWd(16);
}

void setInfoFont()
{
#if USE_RRE_FONTS==1
    font.setFont(&rre_term_10x16);
#else
    font.setFont(Term9x14);
#endif
}

void drawField(int x, int y, int w, int h, char *label, uint16_t col=lnCol)
{
    lcd.drawRect(x,y+7,w,h-7,col);
    setInfoFont();
    font.setScale(1);
    font.setColor(labCol,BLACK);
    int wl = font.strWidth(label);
    font.printStr(x+(w-wl)/2,y,label);
}

void showVal(float v, int x, int y, int w,  int p, uint16_t col)
{
    setBigNumFont();
    font.setColor(col,BLACK);
    char txt[10];
    dtostrf(v,w,p,txt);
    font.printStr(x,y,txt);
}

void constData()
{
    drawField(    0,  0,120-5,80-2," Temp ");
    drawField(120+5,  0,120-5,80-2," Time ");
    drawField(    0, 81,120-5,80-2," Pressure ");
    drawField(120+5, 81,120-5,80-2," Altitude ");
    drawField(    0,162,240,80-2," Big Number ",ln2Col);
    setBigNumFont();
    int wv=font.strWidth("88.8");
    font.setColor(v1Col); font.printStr(18+wv,0+24,"'$");
    wv=font.strWidth("999999999.99");
    font.setColor(v5Col); font.printStr(22+wv,162+25,"'");
    wv=font.strWidth("888.8");
    int wv2=font.strWidth("888");
    setInfoFont();
    font.setScale(1,2);
    font.setColor(v4Col); font.printStr(21+120+wv+2,82+22+14,"m");
    font.setColor(v2Col); font.printStr(32+120+wv2+3,24+12,"ms");
}

float v1,v3,v4,v5;
int tm = 0;

void varData()
{
    //v1=88.8; v3=8888.8; v4=888.8; v5=8888888.88;
    // PropFont optimizing: noopt=350ms, ff=317ms, 0+ff=298ms, +f0=290ms +0f=277ms
    showVal(v1, 18,0+24, 4,1, v1Col);
    showVal(tm, 32+120,0+24, 3,0, v2Col);
    showVal(v3, 14,82+24, 6,1, v3Col);
    showVal(v4, 21+120,82+24, 5,1, v4Col);
    showVal(v5, 22,162+25, 12,2, v5Col);
    v1+=1.1; if(v1>99.0) v1=0;
    v3+=10.1; if(v3>9999.0) v3=0;
    v4+=3.3; if(v4>999.0) v4=0;
    v5+=941340.32; if(v5>=999999999.99) v5=0;
}

void loop()
{
    if(mode!=lastMode) {
        lastMode=mode;
        lcd.fillScreen(BLACK);
        constData();
    }
    ms = millis();
    varData();
    tm = millis()-ms;
    Serial.println(tm);
}

https://github.com/adafruit/Adafruit-ST7735-Library/tree/master La Libraire Adafruit_ST7789.h ne fonctionne pas ici ❌

#include <Adafruit_GFX.h> // graphics library
#include <Adafruit_ST7789.h> // library for this display
#include <SPI.h>

#define TFT_CS 7 // if your display has CS pin
#define TFT_DC 8  // data pin


#define TFT_RST -1 // reset pin

Adafruit_ST7789 tft = Adafruit_ST7789(TFT_CS, TFT_DC, TFT_RST);

void setup() {
  tft.init(240, 240, SPI_MODE2);
  tft.setRotation(2); // rotates the screen
  tft.fillScreen(ST77XX_BLACK); // fills the screen with black colour
  tft.setCursor(10, 10); // starts to write text at y10 x10
  tft.setTextColor(ST77XX_WHITE); // text colour to white you can use hex codes like 0xDAB420 too
  tft.setTextSize(3); // sets font size
  tft.setTextWrap(true);
  tft.print("HELLO WORLD!");
}
void loop() {

  }
