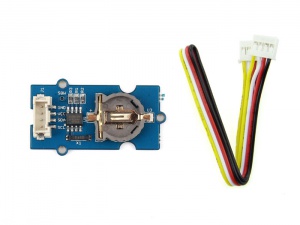

Grove - RTC (Seeed-Studio)

Caractéristiques

24-heures ou 12-heures format avec indication AM/PM

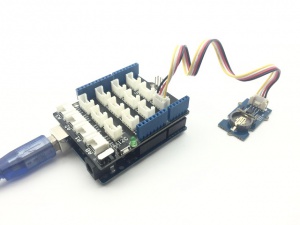

Connectique : I2C protocol

Support

RTC DS1307 clock chip
Lithium Cell Battery (3-Volt CR1225 Lithium)

Voltage

3.3~5.5V

Code Exemple->File -> Example ->RTC->SetTimeAndDisplay

	#include <Wire.h>
	#include "DS1307.h"

	DS1307 clock;//define a object of DS1307 class
	void setup()
	{
		Serial.begin(9600);
		clock.begin();
		clock.fillByYMD(2013,1,19);//Jan 19,2013
		clock.fillByHMS(15,28,30);//15:28 30"
		clock.fillDayOfWeek(SAT);//Saturday
		clock.setTime();//write time to the RTC chip
	}
	void loop()
	{
		printTime();
	}
		/*Function: Display time on the serial monitor*/
	void printTime()
	{
		clock.getTime();
		Serial.print(clock.hour, DEC);
		Serial.print(":");
		Serial.print(clock.minute, DEC);
		Serial.print(":");
		Serial.print(clock.second, DEC);
		Serial.print("  ");
		Serial.print(clock.month, DEC);
		Serial.print("/");
		Serial.print(clock.dayOfMonth, DEC);
		Serial.print("/");
		Serial.print(clock.year+2000, DEC);
		Serial.print(" ");
		Serial.print(clock.dayOfMonth);
		Serial.print("*");
		switch (clock.dayOfWeek)// Friendly printout the weekday
		{
			case MON:
			Serial.print("MON");
			break;
			case TUE:
			Serial.print("TUE");
			break;
			case WED:
			Serial.print("WED");
			break;
			case THU:
			Serial.print("THU");
			break;
			case FRI:
			Serial.print("FRI");
			break;
			case SAT:
			Serial.print("SAT");
			break;
			case SUN:
			Serial.print("SUN");
			break;
		}
		Serial.println(" ");
	}

Code SetTime

https://www.pjrc.com/teensy/td_libs_DS1307RTC.html

https://github.com/PaulStoffregen/Time

https://github.com/PaulStoffregen/DS1307RTC

	#include <Wire.h>
	#include <TimeLib.h>
	#include <DS1307RTC.h>

	const char *monthName[12] = {
	  "Jan", "Feb", "Mar", "Apr", "May", "Jun",
	  "Jul", "Aug", "Sep", "Oct", "Nov", "Dec"
	};

	tmElements_t tm;

	void setup() {
	  bool parse=false;
	  bool config=false;

	  // get the date and time the compiler was run
	  if (getDate(__DATE__) && getTime(__TIME__)) {
		parse = true;
		// and configure the RTC with this info
		if (RTC.write(tm)) {
		  config = true;
		}
	  }

	  Serial.begin(9600);
	  while (!Serial) ; // wait for Arduino Serial Monitor
	  delay(200);
	  if (parse && config) {
		Serial.print("DS1307 configured Time=");
		Serial.print(__TIME__);
		Serial.print(", Date=");
		Serial.println(__DATE__);
	  } else if (parse) {
		Serial.println("DS1307 Communication Error :-{");
		Serial.println("Please check your circuitry");
	  } else {
		Serial.print("Could not parse info from the compiler, Time=\"");
		Serial.print(__TIME__);
		Serial.print("\", Date=\"");
		Serial.print(__DATE__);
		Serial.println("\"");
	  }
	}

	void loop() {
	}

	bool getTime(const char *str)
	{
	  int Hour, Min, Sec;

	  if (sscanf(str, "%d:%d:%d", &Hour, &Min, &Sec) != 3) return false;
	  tm.Hour = Hour;
	  tm.Minute = Min;
	  tm.Second = Sec;
	  return true;
	}

	bool getDate(const char *str)
	{
	  char Month[12];
	  int Day, Year;
	  uint8_t monthIndex;

	  if (sscanf(str, "%s %d %d", Month, &Day, &Year) != 3) return false;
	  for (monthIndex = 0; monthIndex < 12; monthIndex++) {
		if (strcmp(Month, monthName[monthIndex]) == 0) break;
	  }
	  if (monthIndex >= 12) return false;
	  tm.Day = Day;
	  tm.Month = monthIndex + 1;
	  tm.Year = CalendarYrToTm(Year);
	  return true;
	}

Code ReadTime

https://www.pjrc.com/teensy/td_libs_DS1307RTC.html

https://github.com/PaulStoffregen/Time

https://github.com/PaulStoffregen/DS1307RTC

	#include <Wire.h>
	#include <TimeLib.h>
	#include <DS1307RTC.h>

	void setup() {
	  Serial.begin(9600);
	  while (!Serial) ; // wait for serial
	  delay(200);
	  Serial.println("DS1307RTC Read Test");
	  Serial.println("-------------------");
	}

	void loop() {
	  tmElements_t tm;

	  if (RTC.read(tm)) {
		Serial.print("Ok, Time = ");
		print2digits(tm.Hour);
		Serial.write(':');
		print2digits(tm.Minute);
		Serial.write(':');
		print2digits(tm.Second);
		Serial.print(", Date (D/M/Y) = ");
		Serial.print(tm.Day);
		Serial.write('/');
		Serial.print(tm.Month);
		Serial.write('/');
		Serial.print(tmYearToCalendar(tm.Year));
		Serial.println();
	  } else {
		if (RTC.chipPresent()) {
		  Serial.println("The DS1307 is stopped.  Please run the SetTime");
		  Serial.println("example to initialize the time and begin running.");
		  Serial.println();
		} else {
		  Serial.println("DS1307 read error!  Please check the circuitry.");
		  Serial.println();
		}
		delay(9000);
	  }
	  delay(1000);
	}

	void print2digits(int number) {
	  if (number >= 0 && number < 10) {
		Serial.write('0');
	  }
	  Serial.print(number);
	}
