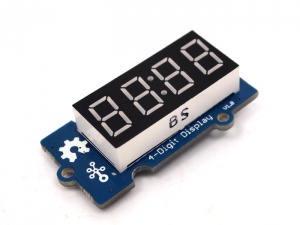

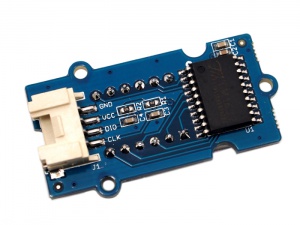

4-Digital Display
Grove - 4-Digital Displays (Seeed-Studio)
Caractéristiques

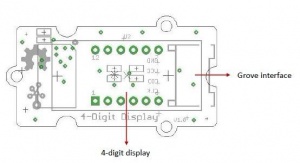

Grove compatible interface (3.3V/5V)
connect to D2/D3
4 digit red alpha-numeric display
8 adjustable luminance levels
Support
Drivers
chip - TM1637
Librairies
Grove_4Digital_Display Library TM1637.h Seeed-Studio/Grove_4Digital_Display
Four-Digit Display Suli Library Four_Digit_Display.h Seeed-Studio/Four_Digit_Display_Suli
Voltage
3.3V ~ 5.5V
Code Exemple->DigitalTube->ClockDisplay
sur le Port D2
Copier les deux librairies dans C:\Program Files (x86)\Arduino\libraries, exécuter Arduino IDE, chercher l'exemple, choisir Arduino UNO, et le port COM
// Author:Frankie.Chu
// Date:9 April,2012
#include <TimerOne.h>
#include "TM1637.h"
#define ON 1
#define OFF 0
int8_t TimeDisp[] = {0x00,0x00,0x00,0x00};
unsigned char ClockPoint = 1;
unsigned char Update;
unsigned char halfsecond = 0;
unsigned char second;
unsigned char minute = 0;
unsigned char hour = 12;
#define CLK 2//pins definitions for TM1637 and can be changed to other ports
#define DIO 3
TM1637 tm1637(CLK,DIO);
void setup()
{
tm1637.set();
tm1637.init();
Timer1.initialize(500000);//timing for 500ms
Timer1.attachInterrupt(TimingISR);//declare the interrupt serve routine:TimingISR
}
void loop()
{
if(Update == ON)
{
TimeUpdate();
tm1637.display(TimeDisp);
}
}
void TimingISR()
{
halfsecond ++;
Update = ON;
if(halfsecond == 2){
second ++;
if(second == 60)
{
minute ++;
if(minute == 60)
{
hour ++;
if(hour == 24)hour = 0;
minute = 0;
}
second = 0;
}
halfsecond = 0;
}
// Serial.println(second);
ClockPoint = (~ClockPoint) & 0x01;
}
void TimeUpdate(void)
{
if(ClockPoint)tm1637.point(POINT_ON);
else tm1637.point(POINT_OFF);
TimeDisp[0] = hour / 10;
TimeDisp[1] = hour % 10;
TimeDisp[2] = minute / 10;
TimeDisp[3] = minute % 10;
Update = OFF;
}
il affiche 12:00 et ensuite 12:01 ainsi de suite...
Code Wokwi 1 🛜
wokwi-esp32-devkit-v1, Anonymous
https://wokwi.com/projects/376726394500720641
(GMT+7 for Bangkok, Thailand)
- define CLK_PIN 2 // D2 sur XIAO-ESP32S3
- define DIO_PIN 3 // D3 sur XIAO-ESP32S3
Grove Base for XIAO (Port D1) ✅
XIAO-ESP32S3
4-Digital Display
#include <WiFi.h>
#include <TM1637Display.h>
#include <NTPClient.h>
#include <WiFiUdp.h>
#define CLK_PIN 2 // GPIO2
#define DIO_PIN 3 // GPIO3
// Initialize the TM1637 display
TM1637Display display(CLK_PIN, DIO_PIN);
const char * ssid="Wokwi-GUEST";
const char * password="";
// Define NTP Server
const char* ntpServerName = "pool.ntp.org";
// Initialize UDP client for NTP
WiFiUDP ntpUDP;
// Define time zone (GMT+2 for Zurich Switzerland)
const long utcOffsetInSeconds = 2 * 3600;
NTPClient timeClient(ntpUDP, ntpServerName, utcOffsetInSeconds);
void setup() {
Serial.begin(115200);
// Initialize the TM1637 display
display.setBrightness(0x0a); // Set the brightness (0x00 to 0x0f)
WiFi.begin(ssid, password);
while (WiFi.status() != WL_CONNECTED) {
delay(250);
Serial.print(".");
}
Serial.println("");
Serial.println("WiFi connected");
Serial.print("IP address: ");
Serial.println(WiFi.localIP());
// Initialize the time client
timeClient.begin();
timeClient.setTimeOffset(utcOffsetInSeconds);
}
void loop() {
// Update the time from the NTP server
timeClient.update();
// Get the current time
uint8_t hours = timeClient.getHours();
uint8_t minutes = timeClient.getMinutes();
if (hours >= 7 && hours < 18) {
display.setBrightness(0x0f); // Set the brightness to high
} else {
display.setBrightness(0x07); // Set the brightness to medium
}
// Display the time on the TM1637 display
display.showNumberDecEx(hours * 100 + minutes, 0b11100000, true); //Flash every 2 seconds
uint8_t seconds = timeClient.getSeconds();
Serial.println((String)hours + ":" + minutes + ":" + seconds);
delay(1000); // Update the display every second
}
Code Wokwi 2 🛜
code modifié ajout du clignotement des 2 points toutes les secondes
Grove Base for XIAO (Port D1) ✅
XIAO-ESP32S3
4-Digital Display
#include <WiFi.h>
#include <TM1637Display.h>
#include <NTPClient.h>
#include <WiFiUdp.h>
#define CLK_PIN 2 // GPIO2
#define DIO_PIN 3 // GPIO3
// Initialize the TM1637 display
TM1637Display display(CLK_PIN, DIO_PIN);
const char* ssid = "Wokwi-GUEST";
const char* password = "";
// Define NTP Server
const char* ntpServerName = "pool.ntp.org";
// Initialize UDP client for NTP
WiFiUDP ntpUDP;
// Define time zone (GMT+2 for Zurich Switzerland)
const long utcOffsetInSeconds = 2 * 3600;
NTPClient timeClient(ntpUDP, ntpServerName, utcOffsetInSeconds);
void setup() {
Serial.begin(115200);
// Initialize the TM1637 display
display.setBrightness(0x0a); // Set the brightness (0x00 to 0x0f)
WiFi.begin(ssid, password);
while (WiFi.status() != WL_CONNECTED) {
delay(250);
Serial.print(".");
}
Serial.println("");
Serial.println("WiFi connected");
Serial.print("IP address: ");
Serial.println(WiFi.localIP());
// Initialize the time client
timeClient.begin();
timeClient.setTimeOffset(utcOffsetInSeconds);
}
void loop() {
// Update the time from the NTP server
timeClient.update();
// Get the current time
uint8_t hours = timeClient.getHours();
uint8_t minutes = timeClient.getMinutes();
uint8_t seconds = timeClient.getSeconds();
// Adjust brightness based on time of day
if (hours >= 7 && hours < 18) {
display.setBrightness(0x0f); // High brightness
} else {
display.setBrightness(0x07); // Medium brightness
}
// Blink the colon every second: ON if even second, OFF if odd
uint8_t colonState = (seconds % 2 == 0) ? 0b11100000 : 0b00000000;
// Display time with blinking colon
display.showNumberDecEx(hours * 100 + minutes, colonState, true);
// Print time to serial monitor
Serial.println((String)hours + ":" + minutes + ":" + seconds);
delay(1000); // Update every second
}
Code Wokwi 3 🛜
Code modifié ajout du DaylightSaving heure d’été / heure d’hiver
https://github.com/PaulStoffregen/Time TimeLib.h
Grove Base for XIAO (Port D1) ✅
XIAO-ESP32S3
4-Digital Display
#include <WiFi.h>
#include <TM1637Display.h>
#include <NTPClient.h>
#include <WiFiUdp.h>
#include <TimeLib.h> // Nécessaire pour manipuler les dates
#define CLK_PIN 2 // GPIO2
#define DIO_PIN 3 // GPIO3
TM1637Display display(CLK_PIN, DIO_PIN);
const char * ssid = "Mon-ssid";
const char * password = "Mon-password";
const char* ntpServerName = "pool.ntp.org";
WiFiUDP ntpUDP;
NTPClient timeClient(ntpUDP, ntpServerName, 0); // Offset initial à 0
// Fonction pour déterminer si on est en heure d’été en Suisse
bool isDaylightSaving(int day, int month, int weekday) {
// Dernier dimanche de mars → début heure d’été
if (month == 3 && (day - weekday) >= 25) return true;
if (month > 3 && month < 10) return true;
// Dernier dimanche d’octobre → fin heure d’été
if (month == 10 && (day - weekday) < 25) return true;
return false;
}
void setup() {
Serial.begin(115200);
display.setBrightness(0x0a);
WiFi.begin(ssid, password);
while (WiFi.status() != WL_CONNECTED) {
delay(250);
Serial.print(".");
}
Serial.println("\nWiFi connected");
Serial.print("IP address: ");
Serial.println(WiFi.localIP());
timeClient.begin();
}
void loop() {
timeClient.update();
// Récupère l’heure brute UTC
unsigned long rawTime = timeClient.getEpochTime();
setTime(rawTime); // Utilise TimeLib pour extraire jour/mois/semaine
// Calcule l’offset selon heure d’été
int offset = isDaylightSaving(day(), month(), weekday()) ? 2 * 3600 : 1 * 3600;
timeClient.setTimeOffset(offset);
// Recalcule l’heure locale
timeClient.update();
uint8_t hours = timeClient.getHours();
uint8_t minutes = timeClient.getMinutes();
uint8_t seconds = timeClient.getSeconds();
// Luminosité selon l’heure
display.setBrightness((hours >= 7 && hours < 18) ? 0x0f : 0x07);
// Clignotement des deux points
uint8_t colonState = (seconds % 2 == 0) ? 0b11100000 : 0b00000000;
display.showNumberDecEx(hours * 100 + minutes, colonState, true);
Serial.println((String)hours + ":" + minutes + ":" + seconds);
delay(1000);
}
Code Simple Countdown Timer
Compte à rebours (30, 29, 28, 27, 26, 25, 24, 23, 22, 21, 20, 19)
Bibliotheque : https://github.com/avishorp/TM1637
Source : https://arduinoyard.com/tm1637-display-with-arduino/
Testé avec :
Grove Base for XIAO (Port D1) ✅
XIAO-ESP32S3
4-Digital Display
Le résultat : (30, 29, 28, 27, 26, 25, 24, 23, 22, 21, 20, 19)
Grove Base for XIAO (Port D2) ✅
XIAO-RA4M1
4-Digital Display
// TM1637 Display with Arduino - Countdown Timer
#include <TM1637Display.h>
#define CLK 2
#define DIO 3
TM1637Display display(CLK, DIO);
void setup() {
display.setBrightness(7);
}
void loop() {
for (int i = 30; i >= 0; i--) {
display.showNumberDec(i, true); // Display with leading zero (e.g., 09)
delay(1000);
}
display.clear();
delay(2000);
}
Code - TM1637 Display - Full Test
Le code est executé une seule fois, reset pour faire à nouveau
Source : https://arduinoyard.com/tm1637-display-with-arduino
Grove Base for XIAO (Port D1) ✅
XIAO-ESP32S3
4-Digital Display
// TM1637 Display with Arduino - Full Test
#include <TM1637Display.h>
// Define TM1637 module connection pins (Digital Pins)
#define CLK 2 // Clock Pin
#define DIO 3 // Data Pin
// Delay time between different test cases
#define TEST_DELAY 2000
// Custom segment encoding for displaying "DONE"
const uint8_t SEG_DONE[] = {
SEG_B | SEG_C | SEG_D | SEG_E | SEG_G, // d
SEG_A | SEG_B | SEG_C | SEG_D | SEG_E | SEG_F, // O
SEG_C | SEG_E | SEG_G, // n
SEG_A | SEG_D | SEG_E | SEG_F | SEG_G // E
};
// Create display object
TM1637Display display(CLK, DIO);
void setup() {
// Set brightness level (0x0F = max brightness)
display.setBrightness(0x0F);
}
void loop() {
int k;
uint8_t data[] = { 0xff, 0xff, 0xff, 0xff }; // All segments ON
uint8_t blank[] = { 0x00, 0x00, 0x00, 0x00 }; // All segments OFF
// 1. Display all segments ON
display.setSegments(data);
delay(TEST_DELAY);
// 2. Display numbers 0123
data[0] = display.encodeDigit(0);
data[1] = display.encodeDigit(1);
data[2] = display.encodeDigit(2);
data[3] = display.encodeDigit(3);
display.setSegments(data);
delay(TEST_DELAY);
// 3. Display partial digits
display.clear();
display.setSegments(data + 2, 2, 2); // Display "23__"
delay(TEST_DELAY);
display.clear();
display.setSegments(data + 2, 2, 1); // Display "_23_"
delay(TEST_DELAY);
display.clear();
display.setSegments(data + 1, 3, 1); // Display "_123"
delay(TEST_DELAY);
// 4. Show numbers with and without leading zeros
display.showNumberDec(0, false); // Expect: ___0
delay(TEST_DELAY);
display.showNumberDec(0, true); // Expect: 0000
delay(TEST_DELAY);
display.showNumberDec(301, false); // Expect: _301
delay(TEST_DELAY);
display.showNumberDec(301, true); // Expect: 0301
delay(TEST_DELAY);
// 5. Display negative numbers
display.showNumberDec(-1, false); // Expect: __-1
delay(TEST_DELAY);
display.showNumberDec(-12); // Expect: _-12
delay(TEST_DELAY);
display.showNumberDec(-999); // Expect: -999
delay(TEST_DELAY);
// 6. Show hexadecimal numbers
display.showNumberHexEx(0xf1af); // Expect: f1Af
delay(TEST_DELAY);
display.showNumberHexEx(0x2c); // Expect: __2C
delay(TEST_DELAY);
display.showNumberHexEx(0xd1, 0, true); // Expect: 00d1
delay(TEST_DELAY);
// 7. Display all possible dot positions
for (k = 0; k <= 4; k++) {
display.showNumberDecEx(0, (0x80 >> k), true);
delay(TEST_DELAY);
}
// 8. Brightness test (gradual increase)
for (k = 0; k < 4; k++) {
data[k] = 0xff; // All segments ON
}
for (k = 0; k < 7; k++) {
display.setBrightness(k);
display.setSegments(data);
delay(TEST_DELAY);
}
// 9. On/Off Test
for (k = 0; k < 4; k++) {
display.setBrightness(7, false); // Turn off
display.setSegments(data);
delay(TEST_DELAY);
display.setBrightness(7, true); // Turn on
display.setSegments(data);
delay(TEST_DELAY);
}
// 10. Display "DONE"
display.setSegments(SEG_DONE);
// Halt execution
while (1);
}
