Grove-12-Channel-Capacitive-Touch-Keypad-ATtiny1616
Caractéristiques
UART Type : Soft UART
Connect Port : D2,D3
AVR Board
Seeeduino Nano
Seeeduino V4.2
Arduino UNO REV3 + Base Shield V2

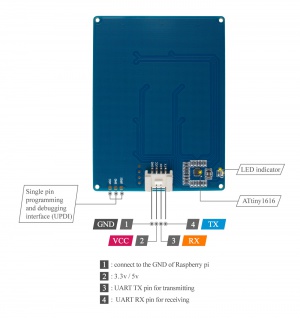

Images
Connectique
Connectique D2
Voltage
Tension d'alimentation 3,3 V / 5 V
Liens Externes
www.seeedstudio.com/Grove-12-Channel-Capacitive-Touch-Keypad-ATtiny1616-p-4068.html shop
wiki.seeedstudio.com/Grove-12-Channel-Capacitive-Touch-Keypad-ATtiny1616 wiki
